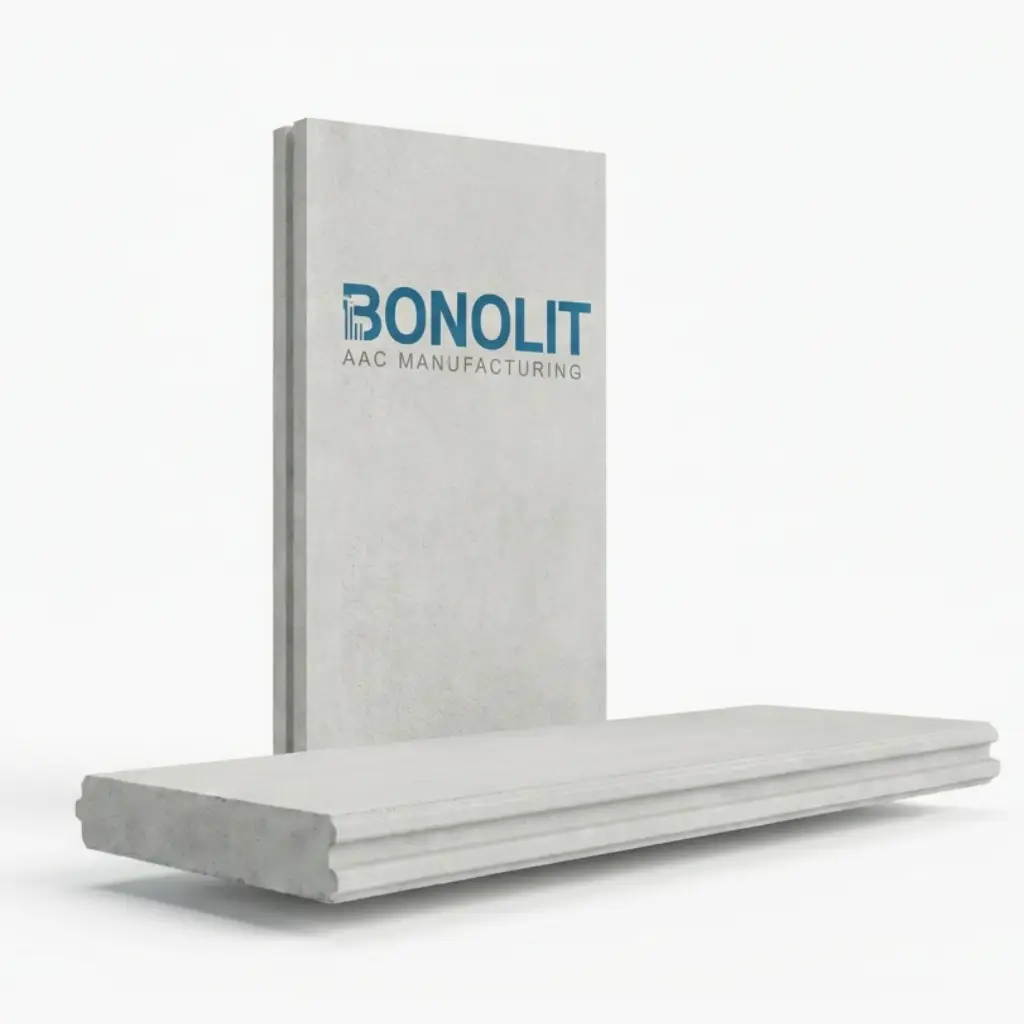

AAC Roof & Floor Panels
The integrated solution for horizontal structures. Offering superior insulation, lightweight strength, and rapid dry installation for sustainable building performance.
Floor Panels Application
Roof Panels Application
Technical Specifications
Insulation
Superior Natural Insulation.
Strength
Light & Strong (Live/Dead Load bearing).
Installation
Dry & Fast Installation.
Sustainability
Maintains performance throughout Building Life.
Available Sizes (Floor & Roof)
| Product Code | Description (Dimensions) | Strength Class |
|---|---|---|

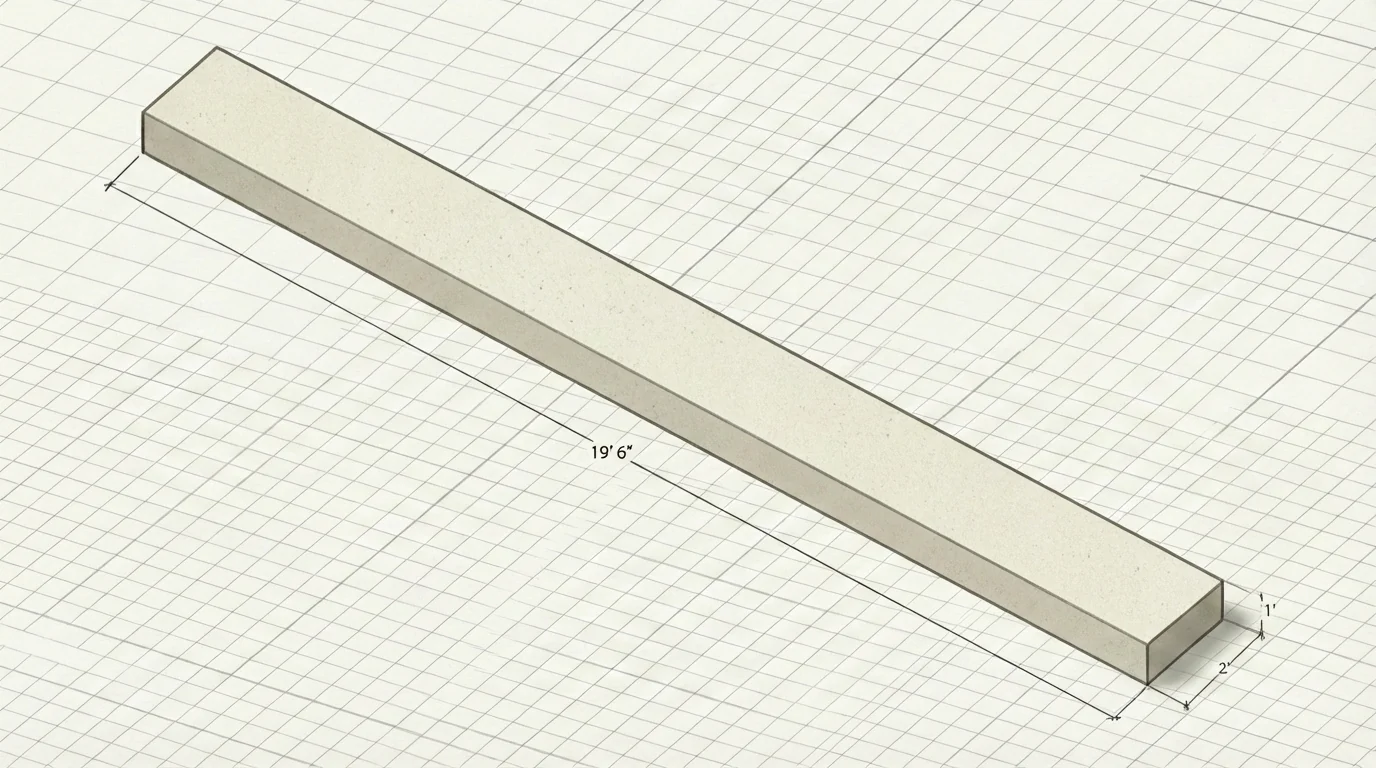

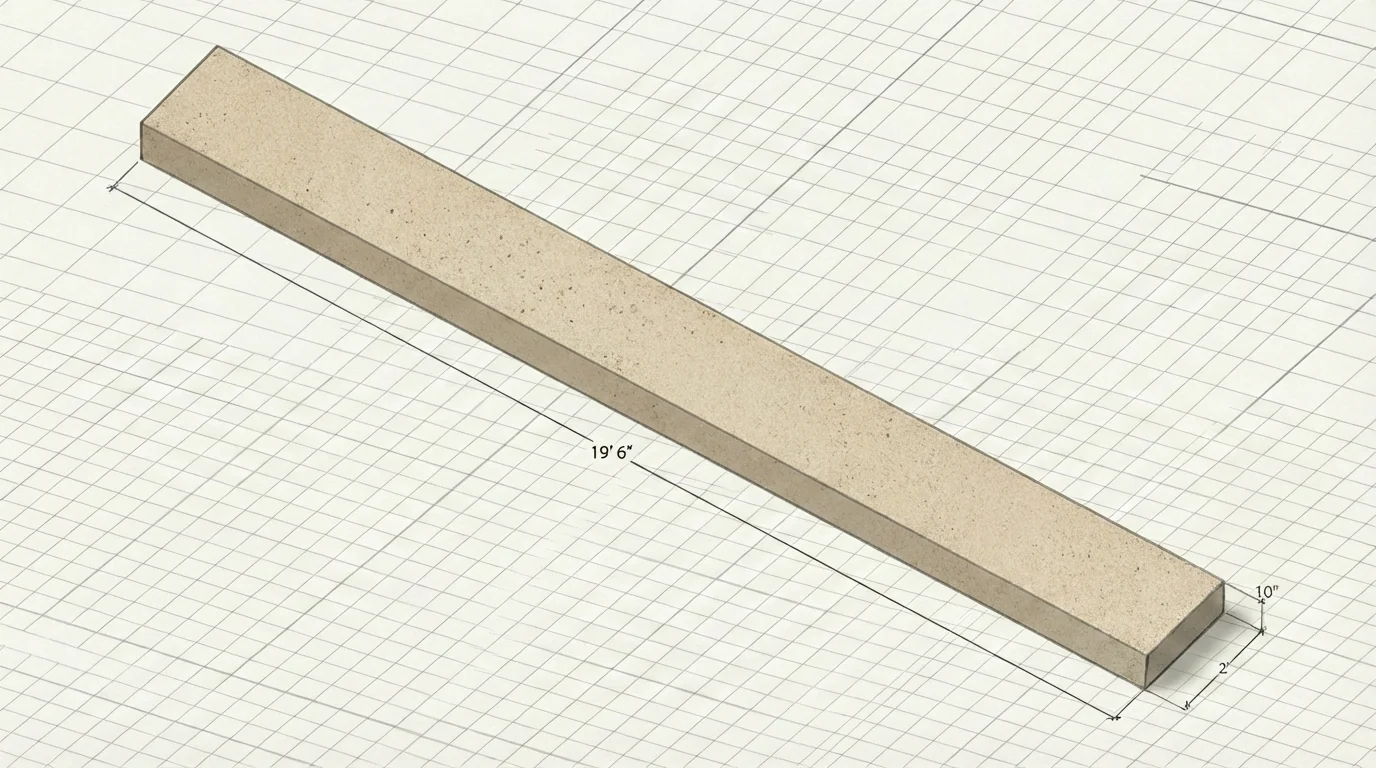

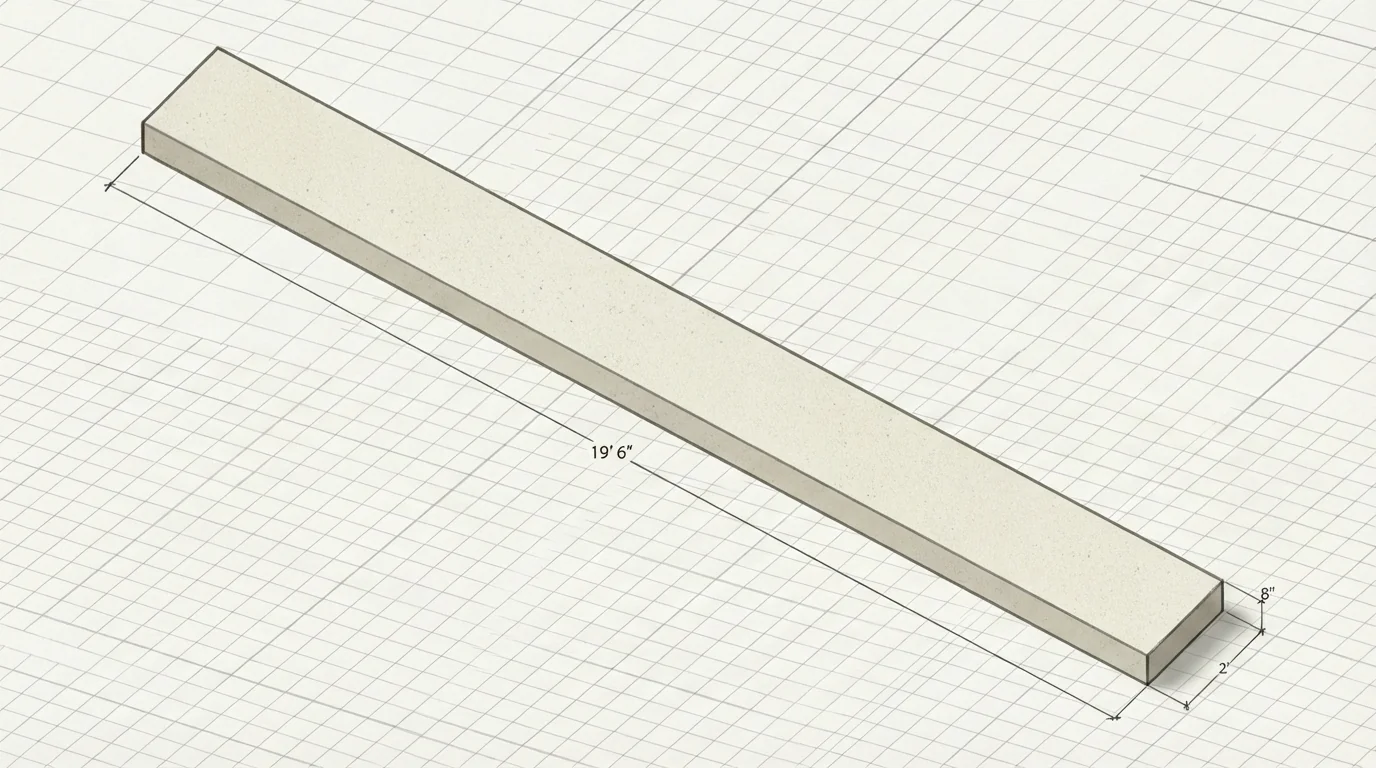

| Floor Panels (FP) | ||
| FP0824196 | 8" x 24" x 19'6" max (200 x 610 x 5945 mm) | AC4 or AC6 |
| FP1024196 | 10" x 24" x 19'6" max (240 x 610 x 5945 mm) | AC4 or AC6 |
| FP1224196 | 12" x 24" x 19'6" max (300 x 610 x 5945 mm) | AC4 or AC6 |
| Roof Panels (RP) | ||
| RP0824196 | 8" x 24" x 19'6" max (200 x 610 x 5945 mm) | AC4 or AC6 |
| RP1024196 | 10" x 24" x 19'6" max (240 x 610 x 5945 mm) | AC4 or AC6 |
| RP1224196 | 12" x 24" x 19'6" max (300 x 610 x 5945 mm) | AC4 or AC6 |
Key Advantages
Natural
Insulation
Insulation
Light &
Strong
Strong
Dry &
Fast
Installation
Installation
Sustainable
Performance
Performance
Fire
Resistant
Resistant
Application Scenarios
Floor Systems
Roof Decks
Commercial & Industrial
Compliance & Certifications
Verified US Performance Standards:
- LEED Compliant Credits
- ASTM E136 Non-Combustible
- ASTM C1693 High Strength Class
- TRUE Zero Waste Production
LEED
COMPLIANT
COMPLIANT
ASTM
E136
E136
ASTM
C1693
C1693
TRUE
ZERO WASTE
ZERO WASTE
